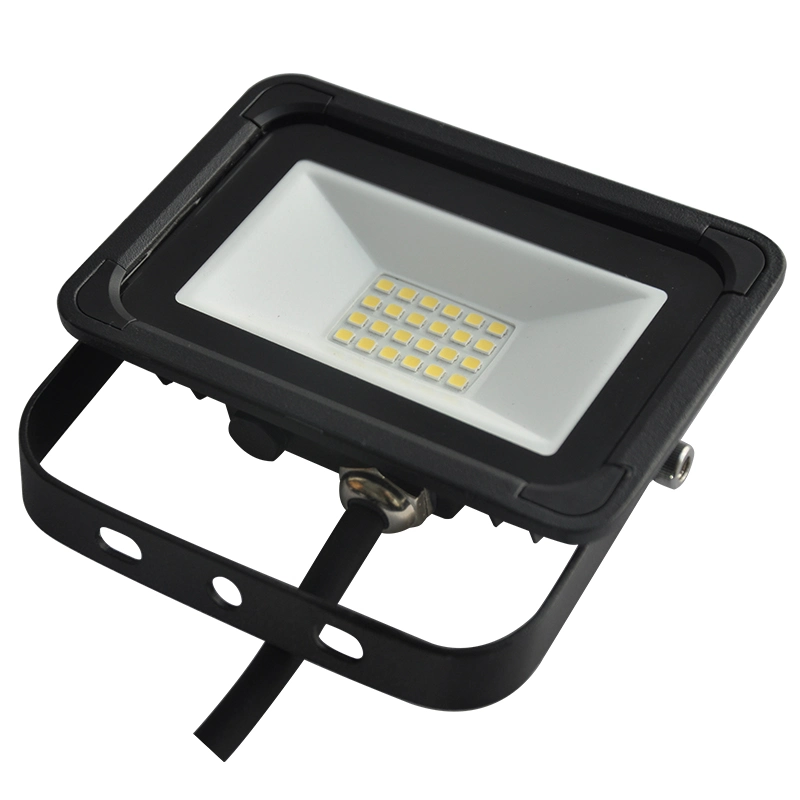

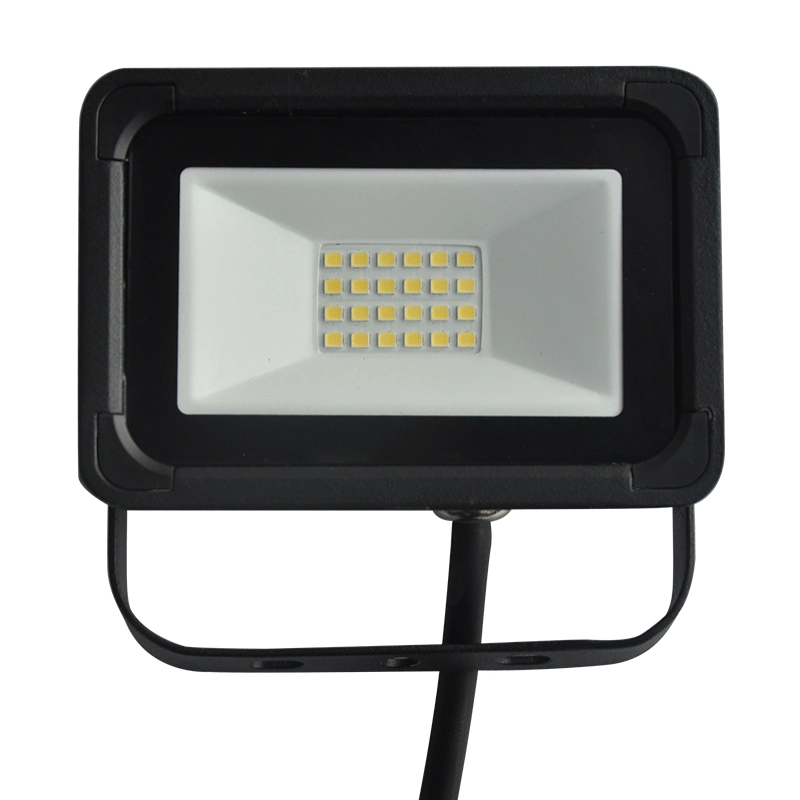

LED floodlight is a new type of LED lighting source.
Compared with traditional floodlights, products developed on the basis of traditional floodlights
have high thermal conductivity, low light decay, pure light, and no ghosting.
Energy saving, environmental protection, long service life, etc.
Ordering information
Slim Flood light packing information
Drawing details
LED PIR Sensor Specification
Product Code: TH-102
Main performance indicators:
Company Information:
Our factory are specialized in led Panel for office, Commercial center, shopping mail, supermarket, factory,School ect.
As main product of our factory, LED Panel is hot sale with high quality and stable performance
1. Digital LED strip light and common flexible LED strip light
LED corn light and high power LED bulb light
LED tube light (T5, T8 ballast compatible LED tube and common LED tube, Tri-proof LED light)
LED panel light (square panel light and round panel light)
LED street light and LED highbay light
Solar LED wall light and solar LED street light
Commercial lighting lamps (LED spotlight, LED track light, LED cabinet light, LED showcase display light)
Our products enjoy high reputation with lots of advantages among Europe, Australia, South Africa etc.
Warranty:
3 Years Warranty
If item is defective within3 years, you can still send it back to us.
We will send you a new one after receiving the defective item. But you need to pay for whole shipping freight.
Application:
Products are widely used as indoor main illumination lighting in the office.
Commercial center, shopping mail, supermarket, factory,School etc.
Packaging & Shipping
1.Payment: T/T ,Western Union or Paypal or Excrew, L/C
2.Production lead time for samples : 5-7days, bulk order :7-10days
3.Shipping freight are quoted under your requests
4.Shipping port: shenzhen, Mainland China
5.Discounts are offered based on order quantities
6.MOQ:1pcs
Shipping Method:
1. By Express: DHL, UPS, Fedex, TNT,EMS,a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity,
heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
Our Advantages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE ,FCC,TUV,compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our Services:
1.Your inquiry related to our products or prices will be replied in 8 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
Any needs or problem, welcome to send email for us and get samples for testing
topenergys.en.made-in-china.com
http://topenergys.en.made-in-china.com/
https://topenergys.en.made-in-china.com
https://topenergys.en.made-in-china.com
: + 86 135 3753 7653
Compared with traditional floodlights, products developed on the basis of traditional floodlights
have high thermal conductivity, low light decay, pure light, and no ghosting.
Energy saving, environmental protection, long service life, etc.
Ordering information
| SKU | FLAP3-10W | FLAP3-20W | FLAP3-30W | FLAP3-50W | FLAP3-100W | FLAP3-150W | FLAP3-200W |
| Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W |
| Lumens | 900 lm | 1800 lm | 2700 lm | 4500 lm | 9000 lm | 13500lm | 18000lm |
| Input Voltage | AC200-240V | ||||||
| CCT | 2700K-6500K | ||||||
| CRI | 80 | ||||||
| Luminous efficiency | 90lm/w | ||||||
| LED Chip | Jingneng | ||||||
| Housing color | Black,White,Gray | ||||||
| Material | ADC12 | ||||||
| Collision protection level | IK08 | ||||||
| IP grade | IP65 | ||||||
| Beam Angle | 120° | ||||||
Slim Flood light packing information
| Model No. | Power | Product Size | QTY | G.W./CTN | Weight |
| FLAP3-10W | 10W | 115*102*25mm | 40 | 10KG | 230g |
| FLAP3-20W | 20W | 150*133*29mm | 30 | 12KG | 360g |
| FLAP3-30W | 30W | 180*157*32mm | 20 | 12KG | 560g |
| FLAP3-50W | 50W | 233*205*40mm | 10 | 10KG | 930g |
| FLAP3-100W | 100W | 318*280*53mm | 5 | 10KG | 1800g |
| FLAP3-150W | 150W | 380*324*55mm | 3 | 10.5KG | 3200g |
| FLAP3-200W | 200W | 460*387*55mm | 2 | 10KG | 4200g |
Drawing details
LED PIR Sensor Specification
Product Code: TH-102
Main performance indicators:
| Detection distance | 2~ 8 meter(SENS) | < 24 ºC |
| Detection range | 120 ° | |
| Voltage | 220~240V/AC 50~60Hz | 100~120V/AC 50~60Hz |
| Rated load | 50W ( max ) 220V/AC | 40W (max) 110V/AC |
| Operating temperature | -20 ºC ~+ 40 ºC | |
| Working humidity | <93%RH | |
| Delay time | 12s - 7m ± 2m adjustable | time |
| Ambient illumination | <5>-2000Lux adjustable | Lux |
| Installation height | 1.8m~ 2.5m | |
| Material | ABS | |
| Dimensions | 42*40*52mm | |
| Installation method | Hole 12mm.10mm.8mm | |
| IP Rate | IP44 | |
| Wiring instructions | N-blue line (common zero line); L-brown line (input fire line) | red line (output) |
| Blue and brown lines Input AC90V-240V | Blue line and red line output load | |
| Warranty | 2 years |
Company Information:
Our factory are specialized in led Panel for office, Commercial center, shopping mail, supermarket, factory,School ect.
As main product of our factory, LED Panel is hot sale with high quality and stable performance
1. Digital LED strip light and common flexible LED strip light
LED corn light and high power LED bulb light
LED tube light (T5, T8 ballast compatible LED tube and common LED tube, Tri-proof LED light)
LED panel light (square panel light and round panel light)
LED street light and LED highbay light
Solar LED wall light and solar LED street light
Commercial lighting lamps (LED spotlight, LED track light, LED cabinet light, LED showcase display light)
Our products enjoy high reputation with lots of advantages among Europe, Australia, South Africa etc.
Warranty:
3 Years Warranty
If item is defective within3 years, you can still send it back to us.
We will send you a new one after receiving the defective item. But you need to pay for whole shipping freight.
Application:
Products are widely used as indoor main illumination lighting in the office.
Commercial center, shopping mail, supermarket, factory,School etc.
| Q: What's the best price for my order? |
| A: Price is based on your order quantity , please contact us to get the best price. |
| Q: Can I get a sample to check the quality? |
| A: samples are welcome and it can be delivered to you witin 7 days once you confirmed. |
| Q: Do you have other similar led light for me to choose? |
| A: Yes, contact us, we will send more information. |
| Q: What is the warranty? |
| A: Most of our products are 3 years warranty |
Packaging & Shipping
1.Payment: T/T ,Western Union or Paypal or Excrew, L/C
2.Production lead time for samples : 5-7days, bulk order :7-10days
3.Shipping freight are quoted under your requests
4.Shipping port: shenzhen, Mainland China
5.Discounts are offered based on order quantities
6.MOQ:1pcs
Shipping Method:
1. By Express: DHL, UPS, Fedex, TNT,EMS,a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity,
heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
Our Advantages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE ,FCC,TUV,compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our Services:
1.Your inquiry related to our products or prices will be replied in 8 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
Any needs or problem, welcome to send email for us and get samples for testing
